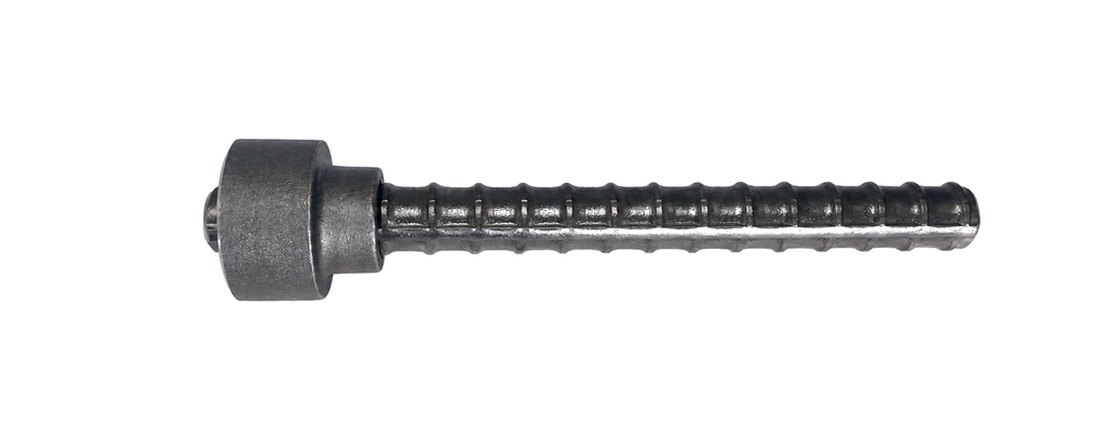

Terminator (Headed Bar System)
HOME > >
Features
- A headed bar anchorage that can be assembled on site with unthreaded rebar.
- Fast and simple installation.
- Reduces rebar material and processing costs.
- Simplifies rebar arrangement and relieves congestion.
- Makes concrete structure removal and extension easier.
Specifications

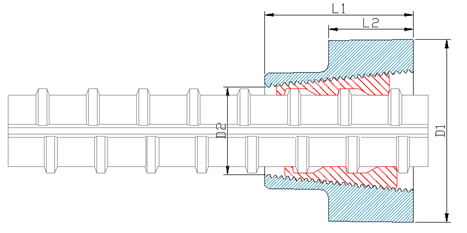

- L1
- Overall anchorage length
- L2
- Head length
- D1
- Head outside diameter
- D2
- Rebar bore diameter
| Type | L1 | L2 | D1 | D2 |
|---|---|---|---|---|
| D16 | 29.5 | - | 40.0 | 18.1 |
| D19 | 35.0 | - | 45.0 | 21.5 |
| D22 | 43.7 | 25.9 | 51.8 | 25.6 |
| D25 | 51.4 | 31.3 | 57.9 | 29.0 |
| D29 | 54.5 | 34.5 | 65.0 | 33.0 |
| D32 | 61.5 | 36.5 | 72.2 | 37.2 |
| Tolerance | ± 2.0 | ± 1.0 | ± 1.0 | ± 1.0 |
Unit: mm※ Dimensions may change due to product improvement or manufacturing process changes.

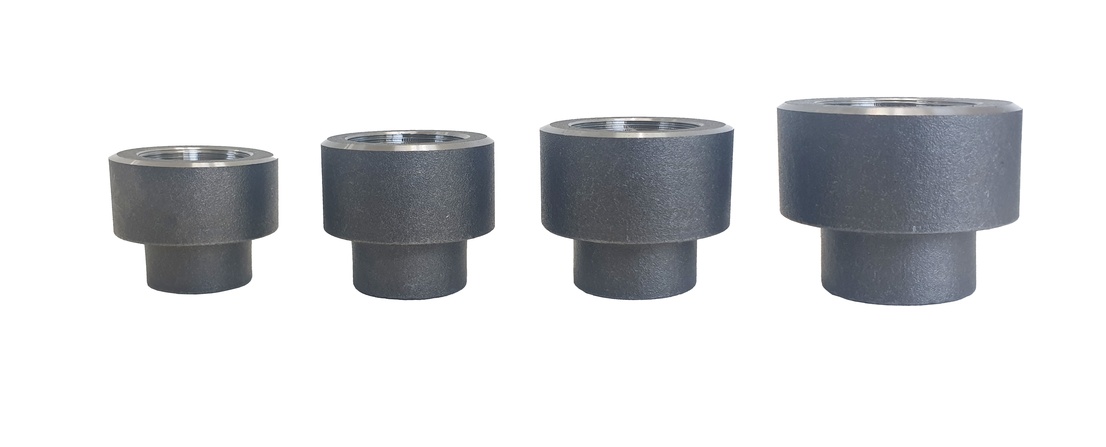

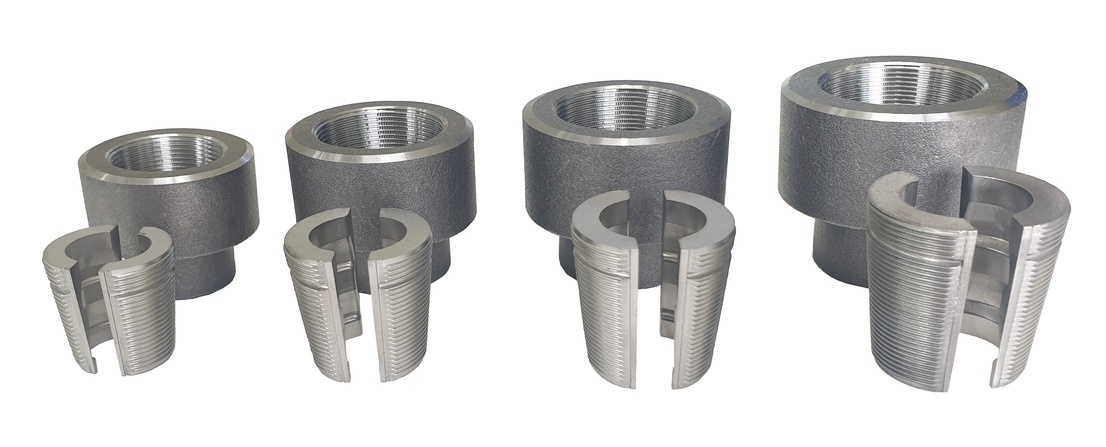

Components
-

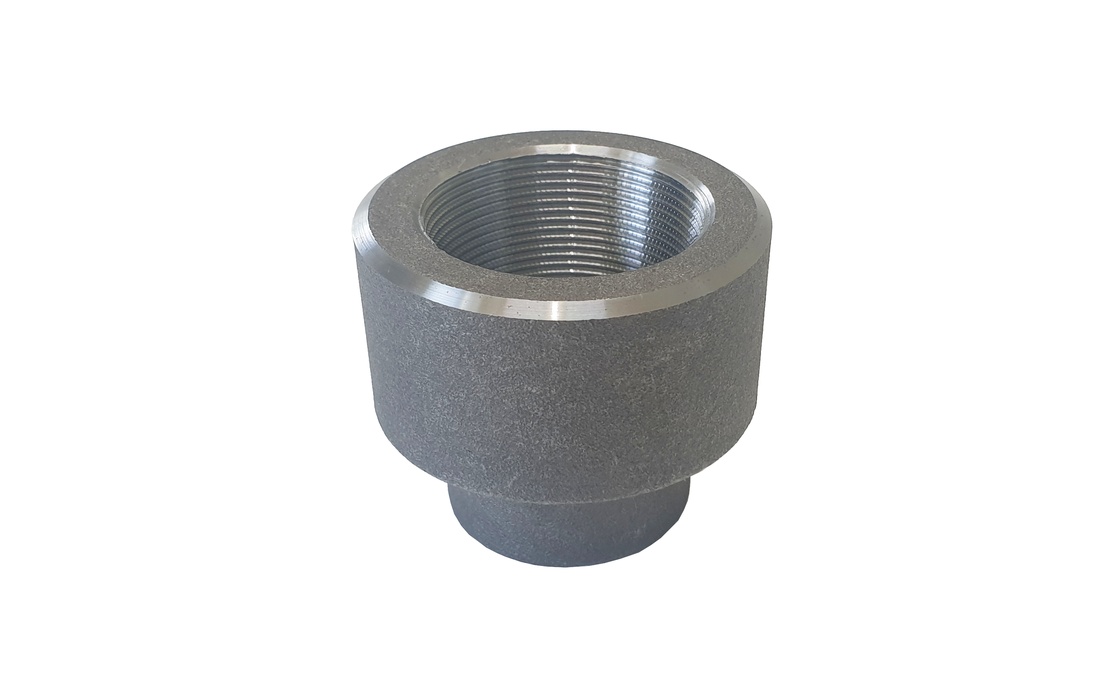

Body
-

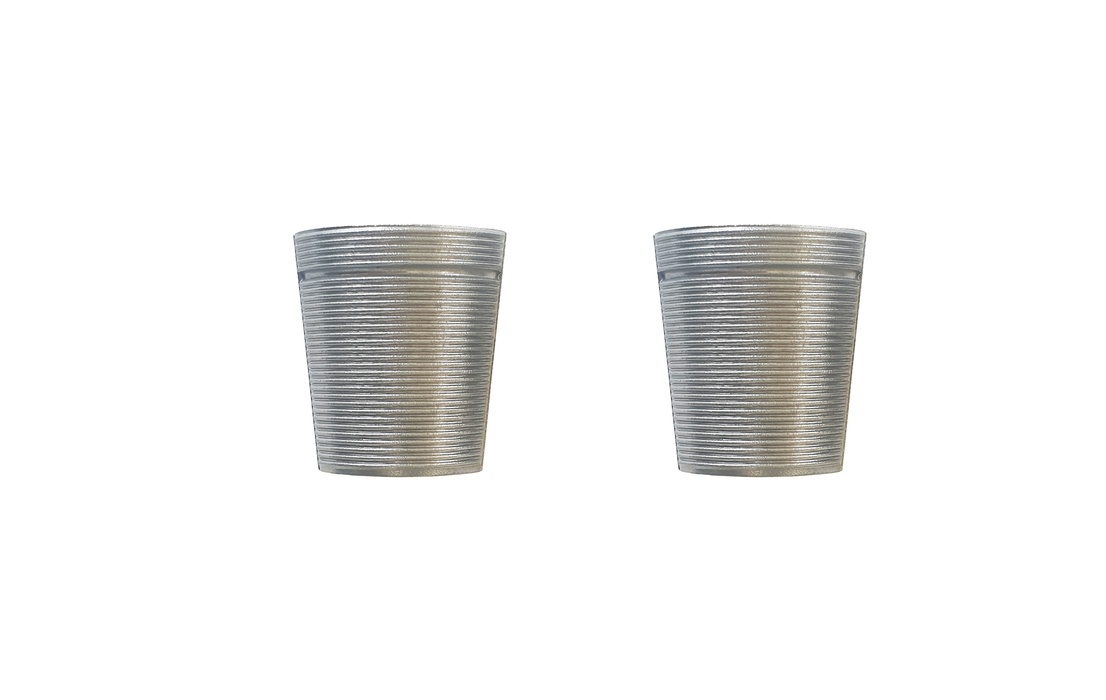

Knob
Installation Steps
-

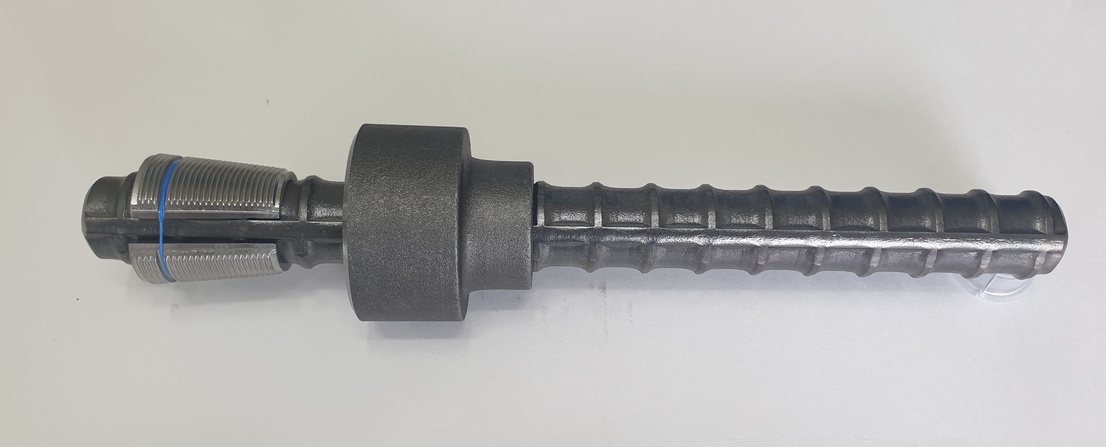

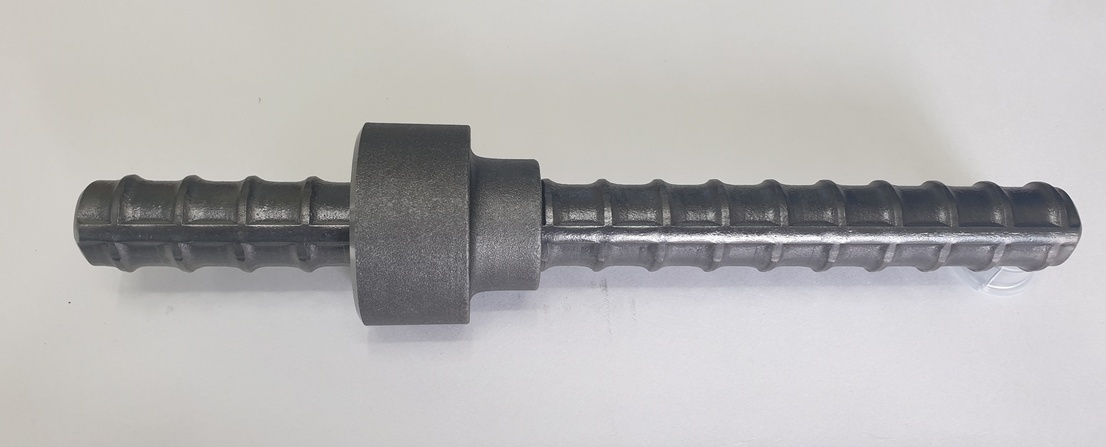

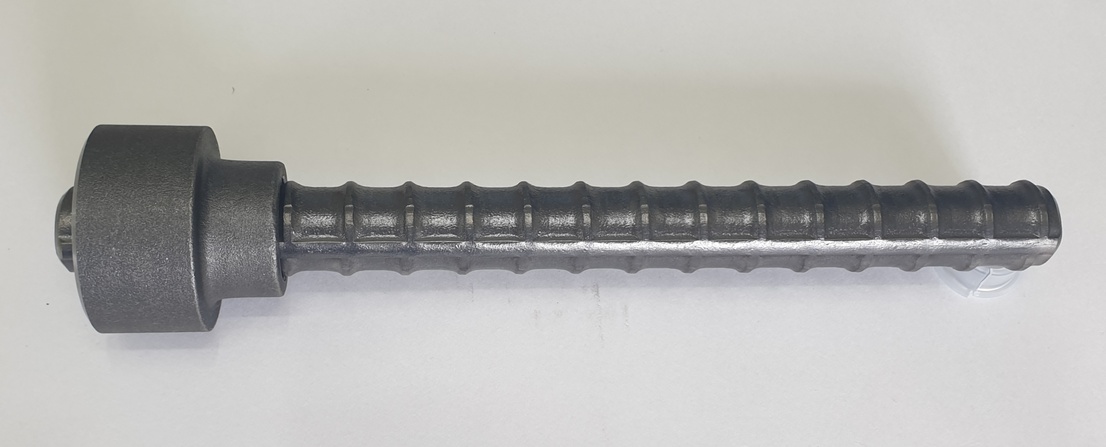

1. Insert the body onto the rebar.
-
2. Position the knob after the first rib of the rebar.
-
3. Hand-tighten and lock the body and knob, then use a pipe wrench until the rebar is fully secured.
Test Photos
-

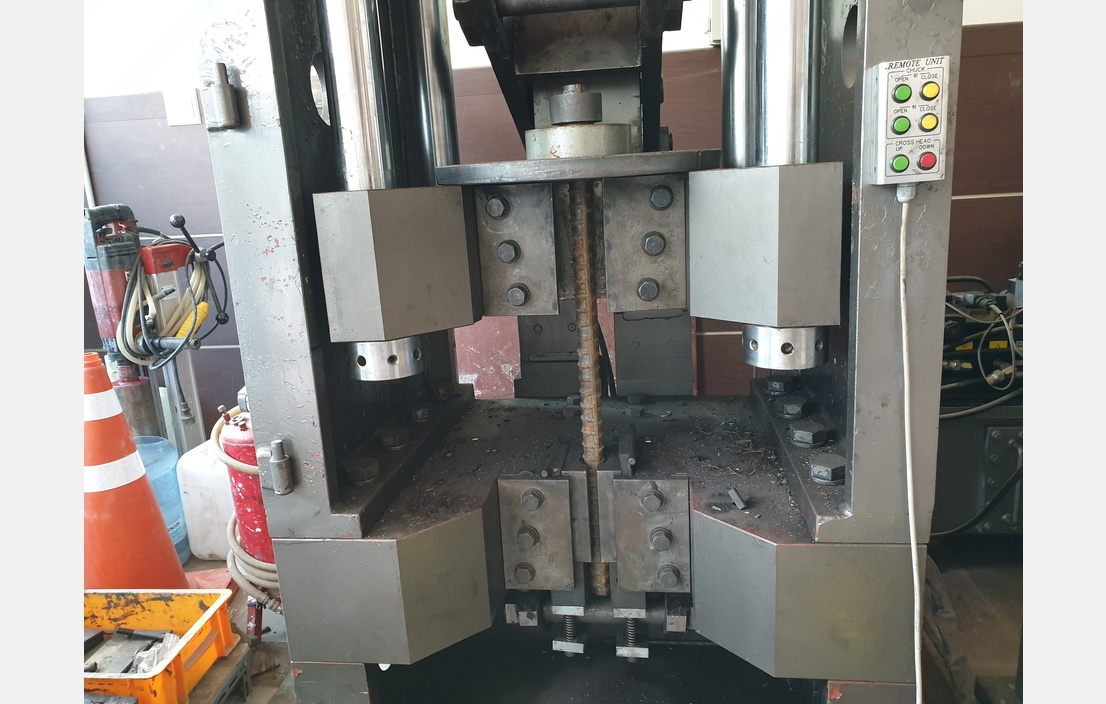

Before rebar fracture
-

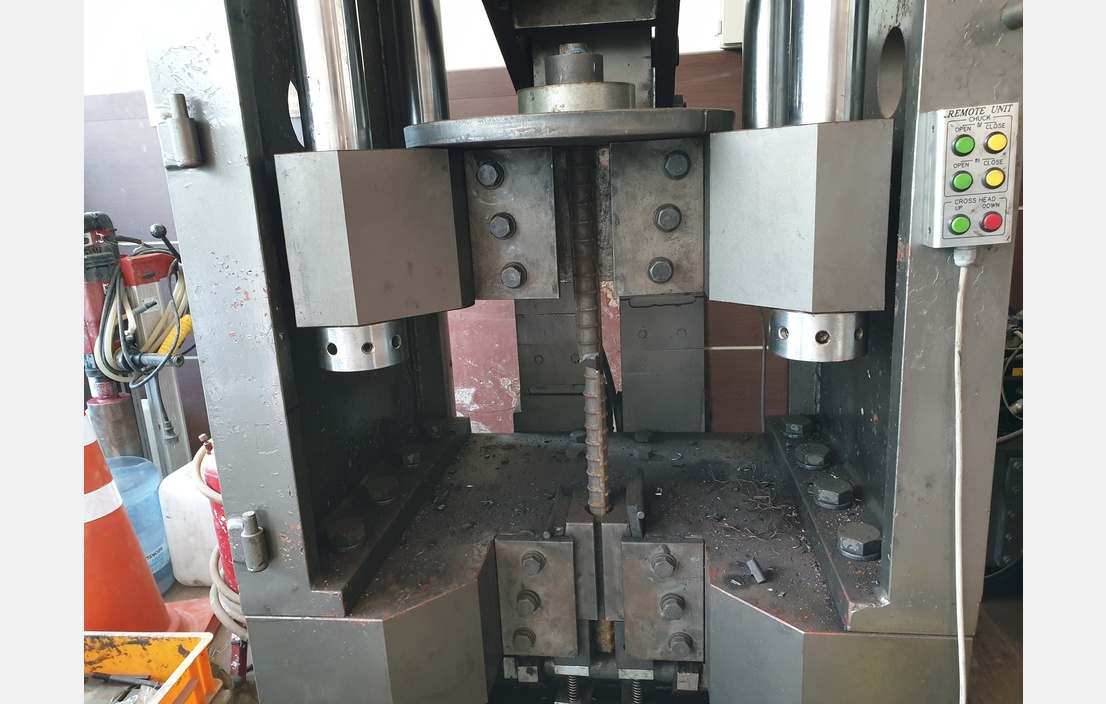

After rebar fracture
D22D25D29D32Test Report and Related Records
The following quality information summarizes the publicly available test report issued in November 2025.
- Product
- On-site assembled headed-bar anchorage, SD600 (D16–D32)
- Standards
- KS B 0802, KS D 3871
- Testing organization
- Korea Construction Technology Research Institute (한국건설기술연구소)
- Issue date
- Nov. 21, 2025
- Test items
- Tensile strength, yield strength
- Result
- All sizes—D16, D19, D22, D25, D29 and D32—passed
Linked reports provide measurements and original images on a web page, rather than a PDF download.
Patents Related to the Terminator
※ Review the project specifications and site quality requirements before application.
Product selection and quotation
Where is the Terminator used?
The Terminator is attached to a rebar end to provide headed anchorage in place of a hook. It helps simplify reinforcement detailing where bars are congested or hooks are difficult to arrange, such as beam-column joints.
Junsung Industry's Terminator can be assembled on site with unthreaded rebar.
| Product | Purpose | Site checks |
|---|---|---|
| Ultra Coupler | Field-assembled rebar splicing | Rebar grade, diameter and installation space |
| Terminator | Rebar end anchorage | Anchorage details and design requirements |
| PC Coupler | Rebar splicing for precast structures | Center and length tolerances and exposed rebar length |
| Structural Coupler | Splicing fixed, threaded rebars | Long/short end threads, bar spacing and assembly clearance |
Before applying the product, check the rebar grade and diameter and the site conditions. Review test documentation against the design requirements. Published test results apply to the specified specimens and sizes.
What information is needed for a quotation?
Provide the product, rebar grade and diameter, quantity, site drawings or photos, whether the bars are fixed, available working space and requested delivery date. Junsung Industry will review product suitability, price and delivery requirements through the contact form or by phone at +82-53-581-5819.
